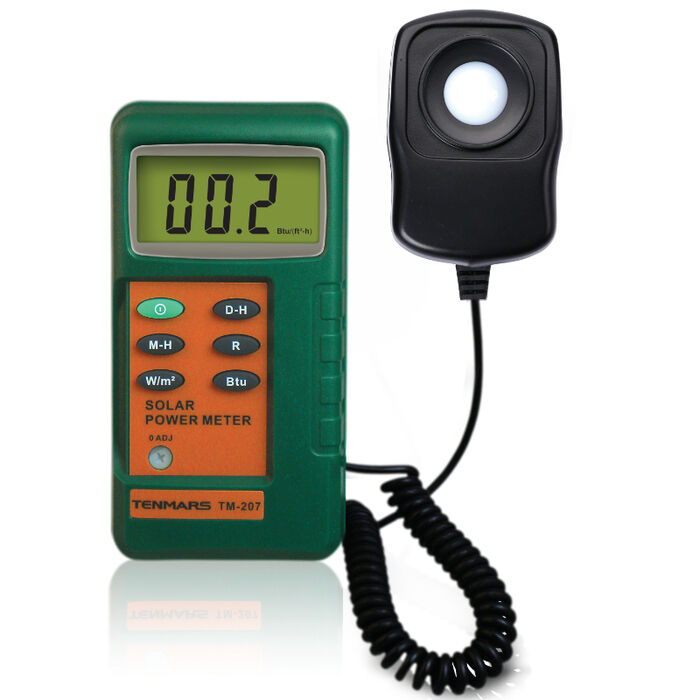

Parameters TM-207
SOLAR PV IRRADIANCE METER
Application
-
Transmission measurement is most suitable for measuring the effectiveness of the solar film.
-
Solar radiation measurement.
-
Car windows light intensity measurement.
-
Optimal incident angle for the solar panel.
-
Measurement of the sun’s transmission through transparent and film glass
-
Convenient, no need to adjust, data displayed clearly.
(TM-207)
Features
-
High precision.
-
Measurable light sources, including all visible light.
-
Overload display OL.
-
Select either W/m2 or BTU / (ft2*h) units1
-
Stable for long use.
Specifications
-
DISPLAY:3½ digits LCD with maximum reading 1999.
-
Dimensions:143x74x34mm(length x width x height).
-
Weight: Approximately 150 grams.
ELECTRIC SPECIFICATION
|
Resolution |
1W/m2 、1 BTU / (ft2*h) |
|
Accuracy |
< ±3/year |
|
Over-input |
Display shows" OL". |
|
Range |
1999W/m2、634 BTU /(ft2*h). |
|
Accuracy |
typically within ± 10W/m2 [ ±3 BTU / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / °C [ ±0.12 BTU / (ft2*h)/ °C] from 25°C |
|
EMC |
this instrument is EMC-compliant and has undergone compatibility tests according to EN61326 (1997) + A1 (1998) + A2 (2001) |
|
Spectrum Reaction |
400~1100nm |
| SKU | TM-207 |
| Brand | Parameters |
