Parameters TM-201L

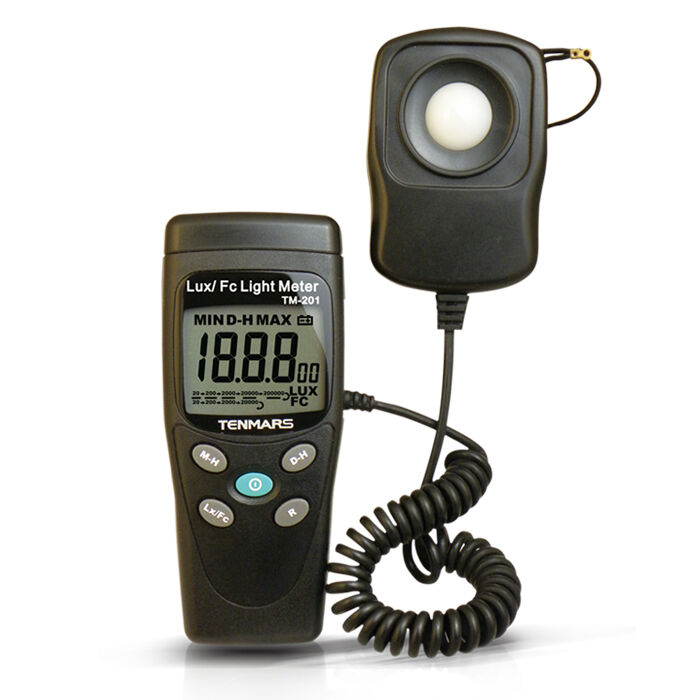

The TM-201L is a digital handheld LED Light Meter used to measure illumination intensity in Lux or Foot-candles (FC). It measures white light LED and all visible light sources with a measuring range up to 200,000 Lux or 20,000 FC

Key Specifications

• Measuring Range (Lux): 200, 2,000, 20,000, 200,000 Lux

• Measuring Range (Foot-candles): 20, 200, 2,000, 20,000 FC

• Accuracy: ± 3% (calibrated to standard incandescent 2856°K and white LED spectrum), ± 8% for other visible light sources

• Display: 3 ½ digits LCD with a max reading of 2000

• Sampling Rate: 2.5 times per second

• Sensor Cable Length: Approximately 1.5 meters

• Power Supply: Single 9V battery (approx. 200 hours of battery life)

• Dimensions: Meter is 130 × 55 × 38 mm; Sensor is 80 × 55 × 25 mm

• Weight: 250 grams
