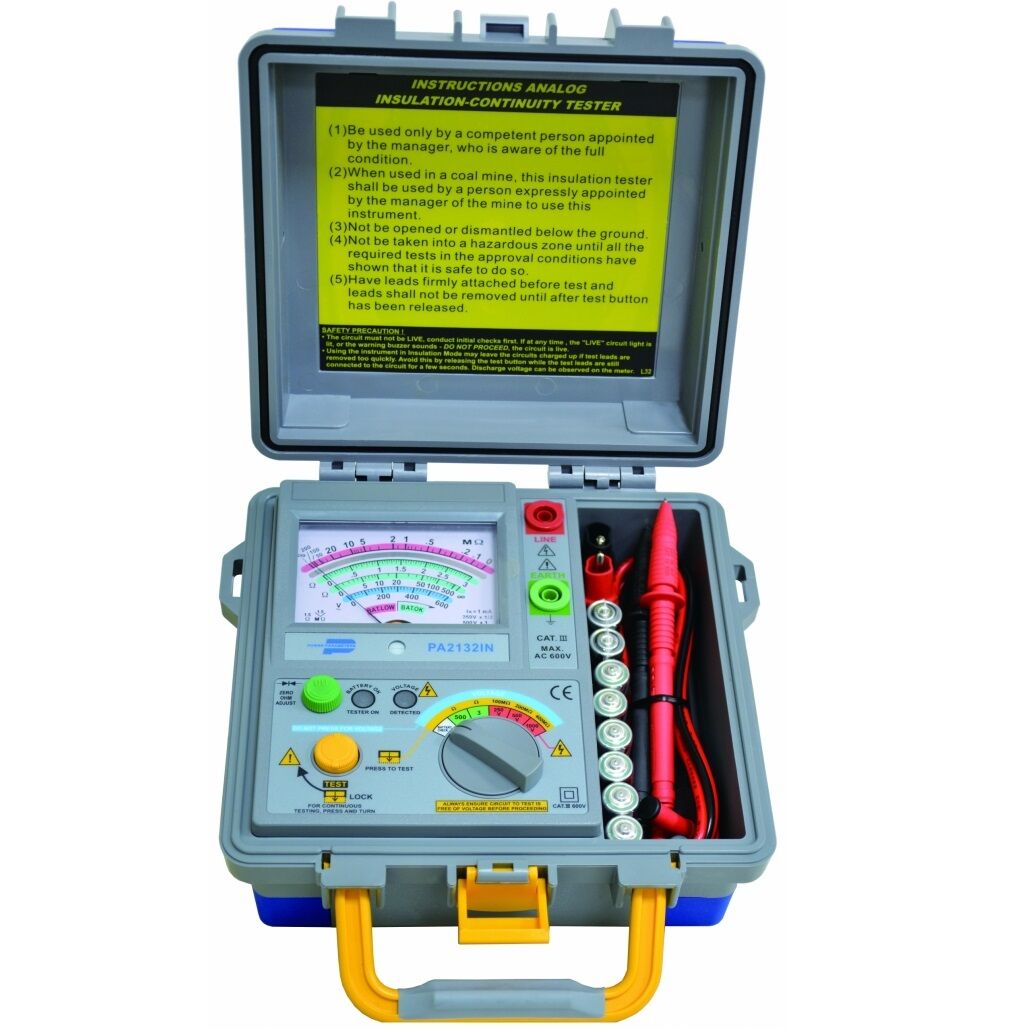

Parameters PA2132IN

Specifications

● High quality Taut Band movement.
● Three insulation test voltages(DC) : 250V, 500V, 1000V.
● Two continuity test on low ohms : 3Ω & 500Ω.
● Compact and lightweight.
● 200mA continuity short circuit current.
● 1mA test current on insulation test at nominal voltage.
● Automatic discharge of capacitive and inductive circuit with charge stored in the circuit under test.
● Live warning and display or external voltage presence.
● Fuse, air gap, crowbar and overload protected.
● On line battery monitoring shows if battery is ok.
● Manual zero ohm adjustment.
● Low battery consumption.
● Mirror scale.
● Push and turn locking switch for continuous and hand free testing.
● BS 16 edition
