A5 - APPA OPEN CLAMP MULTIMETER

$154.00
RRP $193.00
SAVE $39.00 (20%)
In Stock


Calculate Shipping



Standard Shipping - $0.00

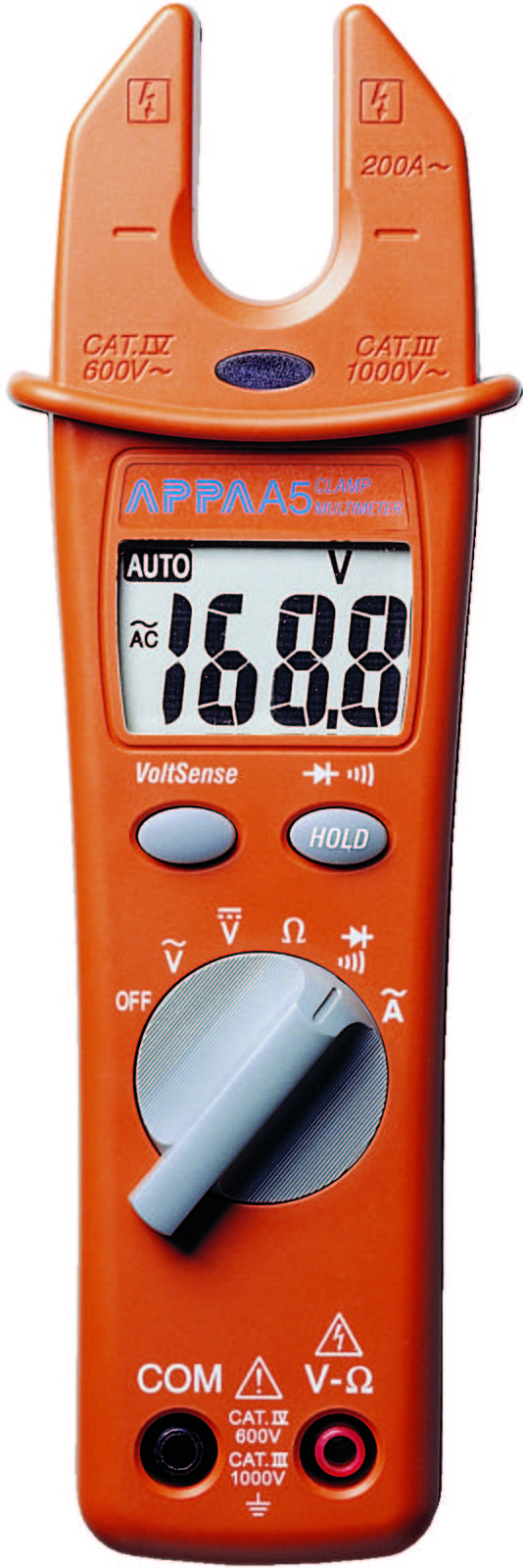

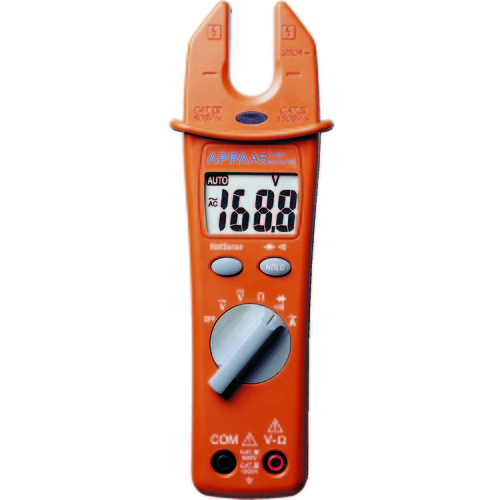

The APPA A5 is an open jaw clamp multimeter.

Key Features

  • Non-Contact current measuring
  • 1000v AC/DC Rated
  • Resistance Measurement
  • Non-Contact Voltage Sensor
  • Probe Holder
  • Measure up to 16mm cables
  • CAT IV 600V / CAT ll 1000V
  • 200 Count
  • Accuracy 1.00%
 Specifications
 Voltage AC


  APPA A7, A7D
  Range:                                             600V
  Basic Accuracy:                           +/-(1.5%+3d)
  APPA A5, A8
  Range:                                             200.0V (A5), 750V
  Basic Accuracy:                           +/-(1.5%+3d)
  APPA A7A, A9, A6
  Range:                                             1.0~750.0V
  Basic Accuracy:                           +/-(1.5%+3d)

  APPA A7, A7D
  Overload Protection:                    600V DC Or AC Rms
  APPA A5, A7A, A8, A9, A6, A6D, A6DR
  Overload Protection:                    750V Rms

  Conversion Type:                           Average Sensing RMS Indicating



 Voltage DC
  APPA A7, A7D
  Range:                                             600V
  Basic Accuracy:                           +/-(1.0%+2d)
  APPA A5, A8
  Range:                                             200.0V (A5), 1000V
  Basic Accuracy:                           +/-(1.0%+3d)
  APPA A7A, A9, A6, A6D, A6DR
  Range:                                             1.5~999.9V, -0.2V~-999.9V
  Basic Accuracy:                           +/-(1.0%+2d)

  APPA A7, A7D
  Overload Protection:                    600V DC Or AC Rms
  APPA A5, A7A, A8, A9, A6, A6D, A6DR
  Overload Protection:                    1000V DC Or AC Peak



 Current AC
  APPA A7, A7D, A5, A8
  Range:                                             200.0A
  Basic Accuracy:                           +/-(3.0%+3d) 45Hz~66Hz
  APPA A7A
  Range:                                             0.3A~200.0A
  Basic Accuracy:                           +/-(1.8%+3d) 50Hz~60Hz
  APPA A9
  Range:                                             0.3A~400.0A
  Basic Accuracy:                           +/-(1.8%+3d) 50Hz~60Hz
  APPA A6, A6D, A6DR
  Range:                                             0.3A~600.0A
  Basic Accuracy:                           +/-(2.0%+1A) 50Hz~60Hz

  Conversion Type:                           Average Sensing RMS Indicating


 Resistance
  APPA A7, A7D, A5, A8
  Range:                                             2000?
  Basic Accuracy:                           +/-(1.0%+2d)
  APPA A7A, A9, A6, A6D, A6DR
  Range:                                             2000?
  Basic Accuracy:                           +/-(2.0%+2d)

  Overload Protection:                    600V Rms



 Continuity Beeper
  APPA A7, A7D, A8
  Threshold:                                      <25?
  APPA A5
  Threshold:                                       <100?
  APPA A7A, A9, A6, A6D, A6DR
  Threshold:                                      <200?

   Indicator:                                        2kHz Tone Buzzer


 Diode Test
  APPA A7, A7D, A5, A8, A7A, A9, A6, A6D, A6DR
  Open Circuit Voltage:                   3V




 Gerneral Specifications
 Sampling Rate


  APPA A7, A7D, A5, A8
  2.5 Times/Sec
  APPA A7A, A9, A6
  5 Times/Sec




 Overload Indication


   APPA A7, A7D, A5, A8
   OL Is Displayed For "A" And "?" Functions.  Show The Real Value For "V"
   Function
   APPA A7A, A9, A6
   "OL" Or "-OL"



 Low Battery Indication


 Auto Power Off


  Approx. 30 Minutes


 Operating Temperature


  -20?~ 50?, <80% RH


 Sotreage Temperature
  -20?~ 60?

 Temperature Coefficient
  0.15(Spec. Acc)/?, <18? Or >28?

 Safety


  APPA A7, A7D
  CAT. III 600V
  APPA  A8, A9, A6
  CAT. III 600V/ CAT. II 1000V
  APPA A5, A7A
  CAT. IV 600V/ CAT.III 1000V

  IEC61010 And Designed To Meet UL61010 Specifications



 Maximum Conductor Size


  APPA A7
  12mm Dia.
  APPA A7D, A7A, A5
  16mm Dia.
  APPA  A8
  23mm Dia.
  APPA A9
  27mm Dia.
  APPA A6
  32mm Ida.



 Maximum Jaw Opening
  APPA A7
  12mm Dia.
  APPA A7D, A7A, A5
  16mm Dia.
  APPA  A8
  28mm Dia.
  APPA A9
  35mm Dia.
  APPA A6
  38mm Ida.


 Power Requirement
   Single 9V Battery (NEDA 1604 Or IEC 6F22)


 Battery Life
  APPA A7, A7D, A7A, A5, A9, A6
  250 Hours (Alkaline Battery)
  APPA  A8
  300 Hours (Alkaline Battery)

 Size
   APPA A7
   65mm (W) X 185mm (L) X 40mm (H)
   APPA A7D, A7A
   84mm (W) X 175mm (L) X 31mm (H)
   APPA  A5, A8, A9
   66mm (W) X 198mm (L) X 46mm (H)
   APPA A6
   83mm (W) X 200mm (L) X 48mm (H)

 Weight
   APPA A7, A7D, A5, A7A
   280 Grams
   APPA  A8, A9
   260 Grams
   APPA A6
   375 Grams


 Included With Instrument


   APPA A7, A7D, A5, A7A, A8, A9
  Test Leads, ZnC Battery (Installed) And Manual
   APPA A6
   Also Included With Deluxe Carrying Case



(A5)

SKU A5
Brand APPA
Shipping Weight 0.4200kg
Shipping Width 0.230m
Shipping Height 0.060m
Shipping Length 0.110m
