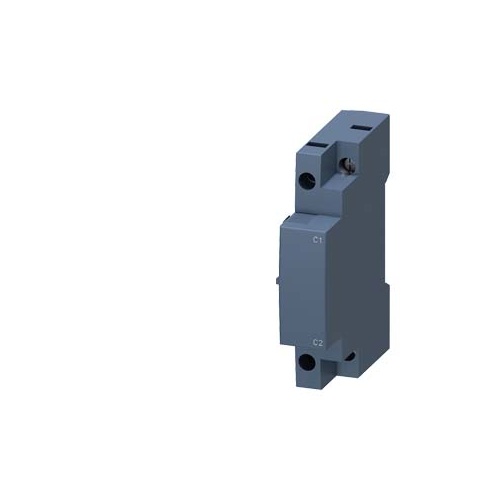

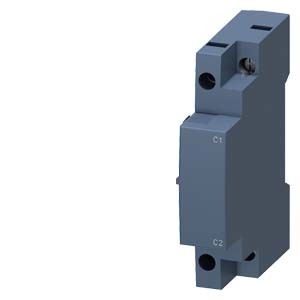

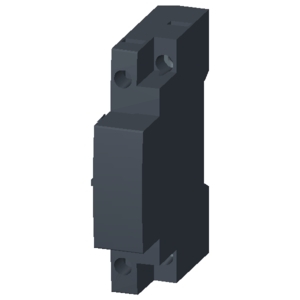

3RV2902­1DF0

Shunt release 90-110 V AC, 50/60 Hz, 100% ON period 70-190 V AC, 50/60 Hz, 5 s ON period 70-190 V AC, 5 s ON period with screw terminal for circuit breaker 3RV2

Product brand name: SIRIUS

Product designation: shunt release

Size of the circuit-breaker: S00, S0, S2, S3

Suitability for use: motor circuit breaker

Protection class: IP on the front IP20

Design of short-circuit protection: fuse

Degree of pollution: 3

Insulation voltage rated value: 690 V

Insulation voltage with degree of pollution 3 ratedvalue: 690 V

Ambient temperature

during storage -50 ... +80 °C

during operation -20 ... +60 °C

Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750: F

Reference code acc. to DIN EN 61346-2: F
