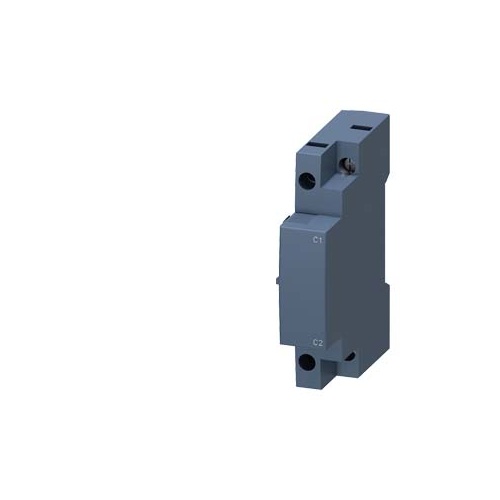

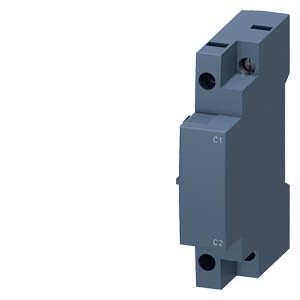

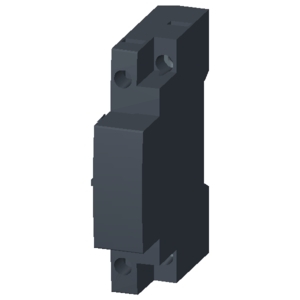

3RV2902­1DB0

Shunt release 20...24 V AC, 50/60 Hz, 100% ON period 20-70 V AC, 50/60 Hz, 5 s ON period 20-70 V DC, 5 s ON period with screw terminal for circuit breaker 3RV2

Product brand name SIRIUS

Product designation shunt release

Size of the circuit-breaker S00, S0, S2, S3

Suitability for use motor circuit breaker

Protection class IP on the front IP20

Design of short-circuit protection fuse

Degree of pollution 3

Insulation voltage rated value 690 V

Insulation voltage with degree of pollution 3 rated value 690 V

Ambient temperature

• during storage -50 ... +80 °C
• during operation -20 ... +60 °C

Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 : F

Reference code acc. to DIN EN 61346-2 :F
