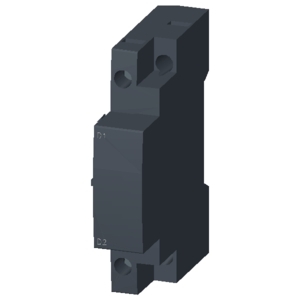

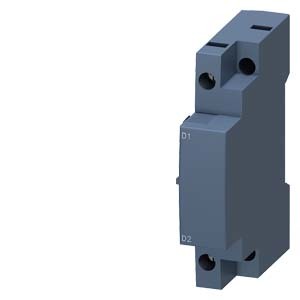

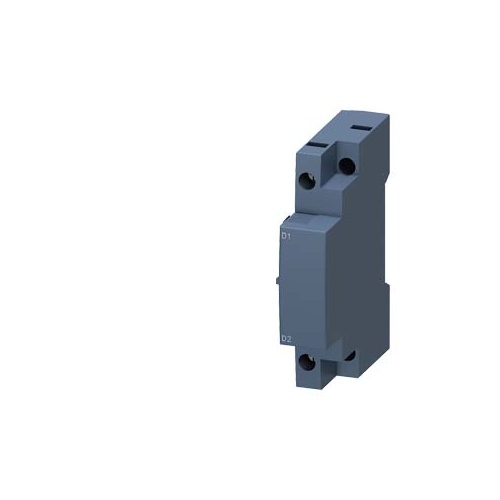

3RV2902­1AB4

Undervoltage release 24 V DC with screw terminal for circuit breaker 3RV2

Product brand name: SIRIUS

Product designation: undervoltage release

Size of the circuit-breakerv S00, S0, S2, S3

Suitability for use: motor circuit breaker

Protection class: IP on the front IP20

Design of short-circuit protection: fuse

Degree of pollution: 3

Insulation voltage rated value: 690 V

Insulation voltage with degree of pollution 3 rated value: 690 V

Ambient temperature

• during storage -50 ... +80 °C
• during operation -20 ... +60 °C

Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 : F

Reference code acc. to DIN EN 61346-2: F
